LigoDLB, LigoWave

Highlights:

5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)
80,000 PPS
170 Mbps capacity
High output power 29 dBm radio
Integrated dual-polarized 20 dBi directional panel antenna
Powerful OS
Smart polling data transmission protocol (iPoll 3)
Meets IP-66 certification
Free NMS (Infinity Controller)
Responsive HTML 5 based GUI
Wall and pole mounting option

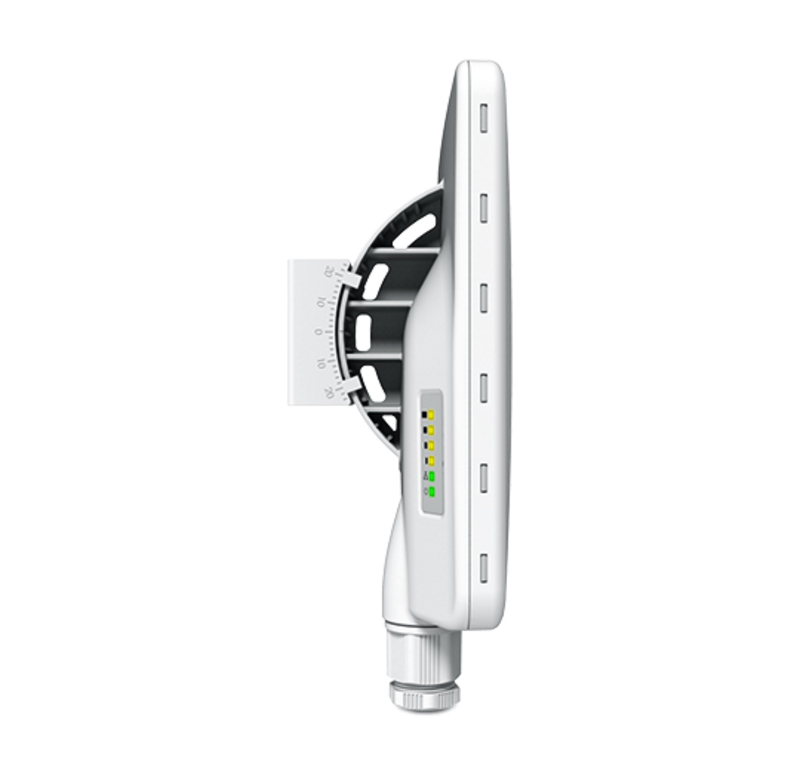

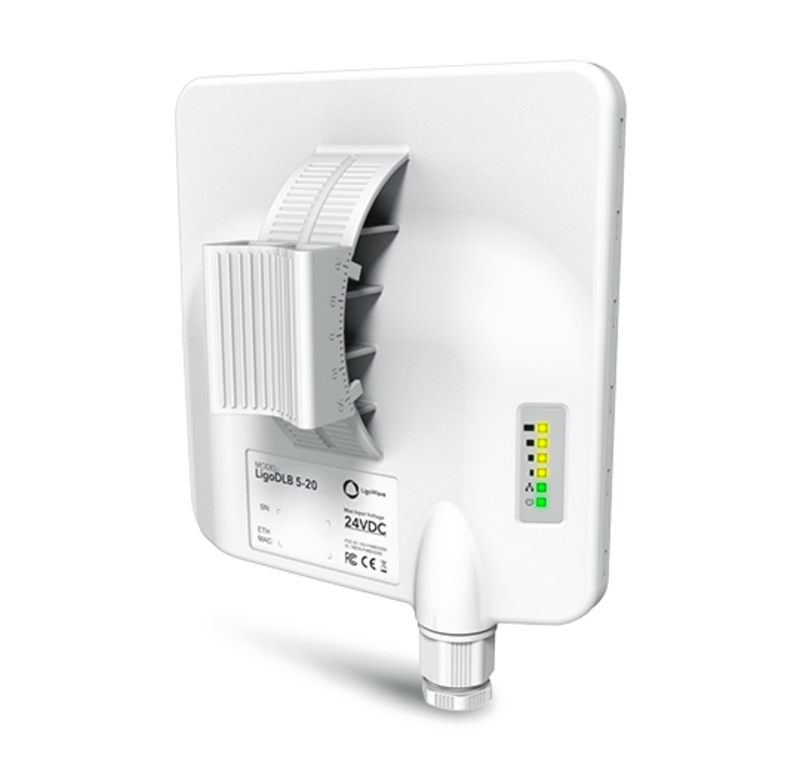

LigoWave’s DLB 5-20n delivers the highest performance and stability available in the 5 GHz CPE class. This product combines a highly advanced radio core containing MIMO 2×2 technology with an integrated, high-gain, dual polarization

directional antenna. The feature-rich operating system is optimized for ultra-high performance wireless communications while optionally allowing compatibility with older 802.11 a standard devices.
The smart dynamic polling based protocol (iPoll 3) ensures reliable communication even in congested areas with 64 client devices connected to a base-station.

Equipped with LigoWave’s dual firmware image feature, remote software upgrades are assured even if a power failure interrupts the process. The device will restart using the prior firmware in the event of an upgrade failure.

The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DLB 5-20n was designed and tested to meet an IP-66 rating as well as vibration, temperature, drop, salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry. It is equipped with a grounding lug and a grounded 24-volt PoE to allow a professional installation, resistant to electrical surges.

Specifications

Product/ distance recomendation	PTMP mode	PTP mode	PTP mode (full capacity)
DLB 5-20n	10 km/ 6.21 mi	15 km/ 9.32 mi	8 km/ 4.97mi

Wireless

WLAN standard	IEEE 802.11 a/n, iPoll (proprietary)
Radio mode	MIMO 2×2
Radio frequency band	5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)
Transmit power	Up to 29 dBm (country dependent)
Receive sensitivity	Varying between -97 and -75 dBm depending on modulation
Channel size	5,10, 20, 40 MHz
Modulation schemes Data rates	802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps 802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Error correction	FEC, Selective ARQ
Duplexing scheme	Time division duplex

Antenna

Type	Integrated directional panel antenna
Gain	20 dBi

Wired

Interface

10/100 Base-T, RJ45

Software

Wireless operating modes	Access point (auto WDS), access point (iPoll 3), station (WDS, iPoll 3), station (ARP NAT)
Wireless techniques	Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)
Wireless security	WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation
Wireless QoS	4 queues prioritization on iPoll 3
Network operating modes	Bridge, router iPv4, router IPv6
Network techniques	Routing with and without NAT, VLAN
WAN protocols	Static IP, DHCP client, PPPoE client
Services	DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog
Management	HTTP(S) GUI, SSH, SNMP read, Infinity Controller, Telnet
Tools	Site survey, link test, antenna alignment

Physical

Dimensions	216 mm (8.5 ‘’), 184 mm (7.2 ‘’), 80 mm (3.1 ‘’)
Weight	413 g (0.91 lb)
Mounting	Pole mounting bracket included

Power

Power supply	12 – 24 VDC passive PoE (24 V passive PoE adapter is included in the package)
Power source	100 – 240 VAC
Power consumption (max)	4.5 W

Environmental

Operating temperature	-40°C (-40 F) ~ +65°C (+149 F)
Humidity	0 ~ 90 % (non-condensing)

Management

System monitoring

SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Certification

FCC/IC/CE
