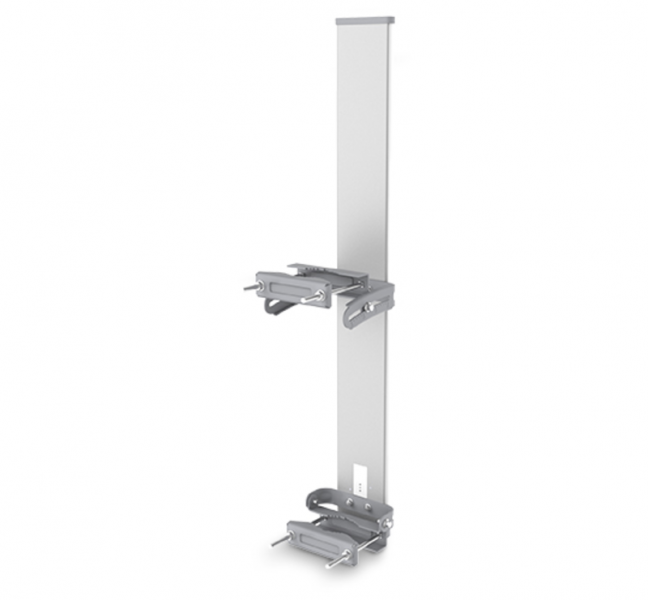

LigoDLB 2-90-19 PRO
A Professional 2.4GHz PTMP Base Station with 802.11n and a 19dBi 90° Sector Antenna
86+17722547662
IIntegrated 2.4 GHz (2×2) MiMo radio
Integrated dual – polarized 90 degree sector antennna (19 dBi)
Frequency 2.402 – 2.492 GHz (FCC 2.412 – 2.462 GHz)
Up to 30 dBm output power (country dependent)
Improved noise immunity
Dedicated 720 MHz CPU with 128 MB of Flash and RAM
iPoll 3 – proprietary protocol for data transmission
Powerful OS
Gigabit Ethernet port
37 – 56 VDC PoE 802.3af (AC to DC adapter included)
IP-67 standards rated enclosure
Free NMS (Infinity Controller)
Professional mounting bracket
Product Available upon Special Request
For more Information
Specifications
| Product/ distance recomendation | Coverage recommendation |
| LigoDLB 2-90-16 PRO | 10km (6.2mi) |
| LigoDLB 2-90-19 PRO | (8.7mi) |
| LigoDLB 5-90-17 PRO | 7km (4.3mi) |
| LigoDLB 5-90-20 PRO | 12km (7.5mi) |
Wireless
| WLAN standard | IEEE 802.11a/b/g/n, iPoll 3 |
| Radio mode | MIMO 2×2 |
| Radio frequency band | 2GHz models: 2.402 – 2.492GHz (FCC 2.412 – 2.462GHz) 5GHz models: 5.150 – 5.850GHz (FCC 5.150 – 5.250 and 5.725 – 5.850GHz) |
| Transmit power | Up to 29dBm (country dependent) |
| Channel size | 5,10, 20, 40 MHz |
| Modulation schemes Data rates | 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11b: DSS (CCK, DQPSK, DBPSK) 802.11n: 300, 270, 240, 180, 120, 90, 60, 30Mbps 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2, 1Mbps |
| Error correction | FEC, Selective ARQ |
| Duplexing scheme | Time division duplex |
Antenna
| Type | Integrated dual-polarized 90° sector antenna |
| Gain | LigoDLB 2-90-16 PRO – 16dBi LigoDLB 2-90-19 PRO – 19dBi LigoDLB 5-90-17 PRO – 17dBi LigoDLB 5-90-20 PRO – 20dBi |
Wired
| Interface | 10/100/1000 Base-T, RJ45 (802.3af) |
Physical
| Dimensions* | 574mm (22.6 ‘’), 114mm (4.5 ‘’), 46mm (1.8 ‘’)/ 942mm (37.1 ‘’), 114mm (4.5 ‘’), 46mm (1.8 ‘’) |
| Weight** | 3000g (6.6lb)/ 3600g (7.94lb) |
| Mounting | pole mount included |
Power
| Power supply | 37 – 56VDC PoE 802.3af (AC to DC adapter included) |
| Power source | 100 – 240 VAC |
| Power consumption (max) | 10W |
Environmental
| Operating temperature | -40°C (-40 F) ~ +65°C (+149 F) |
| Humidity | 0 ~ 90 % (non-condensing) |
Management
| System monitoring | SNMP, Syslog, Web UI, Infinity Controller |
| Configuration | WebUI, Infinity Controller |
Regulatory
| Certification | FCC/IC/CE |
